Metal Hybrid Fiber Optic Adapter , Simplex FC to LC Mating Sleeves

Name: Metal Hybrid Fiber Optic Adapter Simplex FC to LC Mating Sleeves
Brand: DYS/OEM
Price: 1 USD

Quality Metal Hybrid Fiber Optic Adapter , Simplex FC to LC Mating Sleeves wholesale

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : FC

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Contact Now

Metal Hybrid Fiber Optic Adapter , Simplex FC to LC Mating Sleeves

Quick Details:

Brand Name: DYS/OEM

Model Number: FC/LC

Material: Metal

Insertion Loss:<0.20 dB

Package: Plastic box

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Key Features

FC style to LC style

Use in Single-mode or Multimode applications

Free-hanging or panel-mount design

RoHS Compliant

Functions:

A cable to cable fiber optic connection Cable to equipment fiber optic connection

Specifications

Connector 1: FC

Connector 2: LC

Material: Metal

Specifications:

SPECIFICATIONS
Insertion Loss		<0.20 dB
Plug and unplug force		200-600(g/f)
Durability		plug and unplug 1000times
Operating Temperature		-40+75

ORDERING OPTIONS
Housing Material	Sleeve Material		Channel	Application
Nickel plated brass	Zirconia		Simplex	SC/PC
	copper		duplex	SC/APC

Metal Hybrid Fiber Optic Adapter , Simplex FC to LC Mating Sleeves

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Product Tags:

fiber optic attenuator

fiber optical adapter

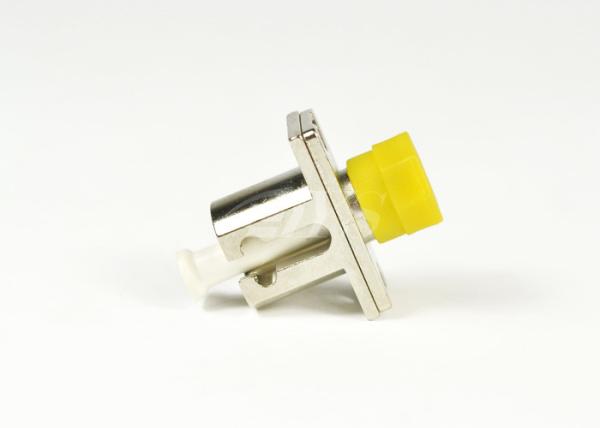

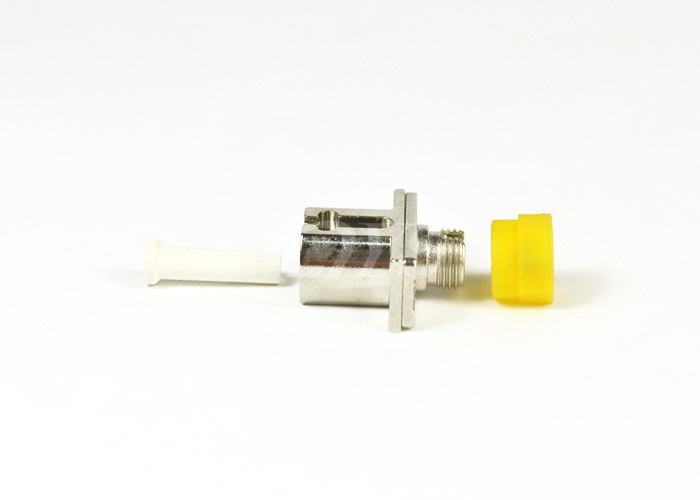

Metal Hybrid Fiber Optic Adapter , Simplex FC to LC Mating Sleeves Images
