FC PC Fiber Optics Connectors 2.0 Binding Head For LAN / WAN

Name: FC PC Fiber Optics Connectors 20 Binding Head For LAN WAN
Brand: DYS/OEM
Price: 1 USD

Quality FC PC Fiber Optics Connectors 2.0 Binding Head For LAN / WAN wholesale

Product name : Binding Head

connector : FC

Application : LAN / WAN

mode : Single mode and Multimode

compatible : NTT standard

Feature : high density

Place of Origin : shenzhen

Certification : IS09001-2015.ROHS

Brand Name : DYS/OEM

MOQ : Negotiable

Price : Negotiable

Contact Now

FC PC Fiber Optics Connectors 2.0 Binding Head For LAN / WAN

Quick Details

Product Type: Fiber Optic Connector

Place of origin: China

Model No: FC connectors

Price Terms: FOB, CIF

Payment Terms: L/C, D/P, T/T

Package: plastic bag

Minimum Order: 500

Delivery Time: 5 days

Brand Name: DYS

Application

1.CATV

2.LAN & WAN

3.Network

4.Broadband

5.FTTH

6.Telecommunication

Features

1.Single mode and Multimode

2.Zirconia sleeves or Phosphor bronze sleeves

3.NTT standard compatible

4.Available without flanges or with flange for duplex, saving panel space

5. SC2 8Port high density for patch panel mount applications

6. Meet JIS5974 and bellcore GR-326 standard

7. Compliant with IEC874-14 & IEC874-19

8.All parts compliant with ROHS

Specifications

Item	Single mode	Multimode
insertion loss	≤0.2dB	≤0.3dB
insert-pull test	1000 times
operating temperature	-40℃~85℃
ceramic ferrule spec	125.5um concentricity deviations: ≤1um	127um concentricity deviations: ≤3um
suitable fiber	9/125um	50/125um, 62.5/125um

FC PC Fiber Optics Connectors 2.0 Binding Head For LAN / WAN

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Product Tags:

fibre cable connectors

optical fiber adapter

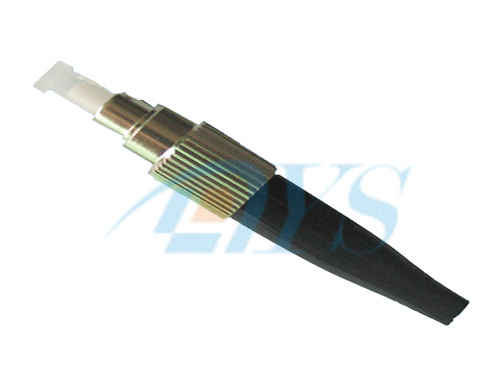

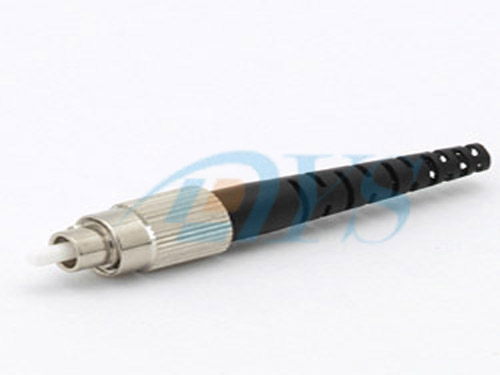

FC PC Fiber Optics Connectors 2.0 Binding Head For LAN / WAN Images
