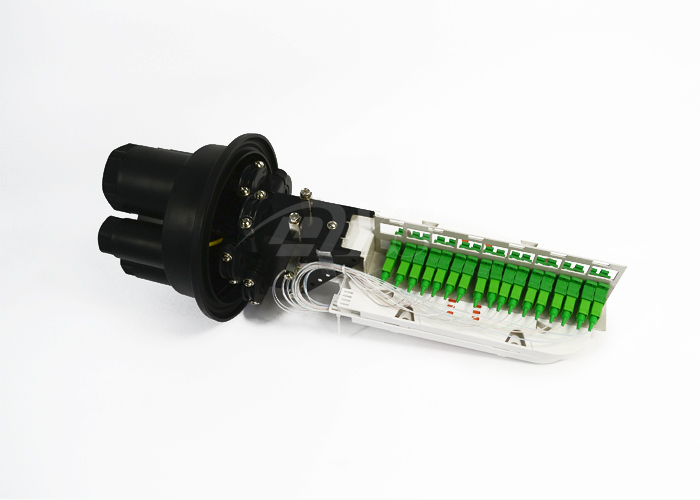

FOSC-14 Dome type/ vertical type / Fiber Optic Splice Closure For Local Area Networks

Place of Origin : Guangdong, China (Mainland)

Brand Name : DYS

Certification : IS09001-2015.ROHS

Model Number : OFSC-014

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : T/T or L/C,Western Union or Paypal

Supply Ability : 500000PCS / Month

Material : ABS

Contact Now

OFSC-14 Dome type/ vertical type / Fiber Optic Splice Closure For Local Area Networks

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: DYS
Model Number: OFSC-014
Material: ABS
Max. fiber: Can fit for 1*16 splitter
Operate: Locking buckle,easy open and close

Applications:

Optical networks

Local area networks

Wide area networks

Features:

Suitable for aerial, duct, and underground application.

Value option for pressure testing

Quick open clamped design

Reliable gasket sealing, reopened repeatedly without changing sealing material

Suitable for ribbon and non-ribbon fibers

Specificaitons:

Item	OFSC-001	OFSC-002	OFSC-003	OFSC-004	OFSC-005	OFSC-006		OFSC-007	OFSC-008	OFSC-009	OFSC-010
Size (HxWxD) mm	460x20 x110	415x200 x105	300x200 x93	386x250 x120	438x205	330x85		435x220	430x130	600x135	600x250
Cable diameter (mm)	Φ5~Φ10mm						Φ10~Φ60mm
Cable port	4	8	2	6	4	3		3	5	5	5
Max capacity of splice	120	144	72	192	288	36		240	96	96	576
Weight(kg)	2.6	3.5	1.45	3.3	2.8	1		3.1	3.5	ab3.6	5.5
Materials	ABS, PC or PP
Duration	25Years
Type	Horizontal				Vertical(Dome)

Material
Sealing performance	Remain unchanged for72 hours on pressure 70kpa
Ambient temperature	-40°C+55°C
Atmospheric pressure environment	70kpa-106kpa
Tensile strength	›1000N
Compressive strength	withstand 2000N/10Cm² in 1min

FOSC-14 Dome type/ vertical type / Fiber Optic Splice Closure For Local Area Networks

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
